YGB系列管道泵專用三相異步電動機外形尺寸 |
|
|
詳細介紹: |
發布時間:2007/9/6 14:28:23 |
|
|

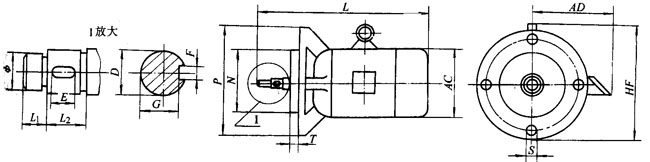

YGB系列外形及安裝尺寸圖(B5)
表2 (單位:mm)
型號 |
D |
E |
F |
G |
φ |
N |
P |
S |
T |
L1 |
L2 |
AC |
AD |
HF |
L |
YGB90S-2 |
16 |
18 |
5 |
13 |
M14 |
130 |
192 |
10 |
8 |
15 |
25 |
175 |
155 |
195 |
342 |
YGB90L-2 |
16 |
12 |
5 |
13 |
M14 |
130 |
205 |
10 |
8 |
14 |
18 |
175 |
155 |
195 |
359 |
YGB112M-2 |
16 |
18 |
5 |
13 |
M14 |
165 |
240 |
10 |
8 |
12.4 |
26 |
230 |
190 |
265 |
426 |
YGB112132-2 |
25 |
22 |
6 |
21.5 |
M14 |
175 |
270 |
10 |
8 |
13 |
28.5 |
230 |
210 |
315 |
485 |
YGB132130-2 |
25 |
22 |
6 |
21.5 |
M14 |
175 |
270 |
10 |
8 |
13 |
28.5 |
270 |
210 |
315 |
485 |
YGB801-2 |
14 |
18 |
4 |
11.5 |
M10 |
138 |
182 |
9 |
8 |
— |
— |
175 |
150 |
195 |
425 |
YGB90L802-2 |
16 |
18 |
5 |
13 |
M14 |
150 |
200 |
9 |
8 |
— |
— |
175 |
150 |
185 |
425 |
|
|
|
|
